PBG系列管道式屏蔽泵概述：
PBG系列管道式屏蔽泵為立式水泵，電泵有水泵和屏蔽電動機（以下簡稱電機）兩部分組成。水泵部分主要零部件葉輪、泵體、密封環，電機部分主要零部件有定子、轉子、屏蔽套、軸承座、軸承、推力盤、冷卻管、放氣閥等零部件組成。屏蔽泵電機選用H級絕緣繞組。轉子由不銹鋼軸和鑄鋁轉子組成。為了防止輸送液體進入定子和腐蝕轉子，在定子內徑及轉子表面分別用不銹鋼屏蔽套密封。密封性：泵體法蘭與電機法蘭連接處，機座與軸承座及定子屏蔽連接處均有耐熱O型密封圈密封。屏蔽泵葉輪懸臂安裝在電機轉軸上，由鍵和螺母予以固緊。 潤滑與冷卻：采用外循環。當泵工作時，由電泵出口處引出少量液體經過冷卻管、后軸承與軸頸間隙、定、轉子間隙、前軸承與軸頸間隙、葉輪后口環組成一循環回路（單級）、一級葉輪進口環組成一循環回路（多級）。

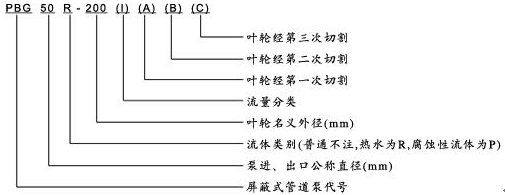

PBG系列管道式屏蔽泵型號意義：
PBG系列管道式屏蔽泵性能參數：
|
型號 |
流量 m3/h |
流量 L/S |
揚程 m |
效率 % |
轉速 r/min |
電機功率 KW |
汽蝕余量 m |
|
PBG40-100 |
6.3 |
1.75 |
12.5 |
54 |
1450 |
0.55 |
3.5 |
|
PBG40-100A |
5.6 |
1.56 |
10 |
52 |
1450 |
0.37 |
3.5 |
|
PBG40-125 |
6.3 |
1.75 |
20 |
46 |
1450 |
1.1 |
3.5 |
|
PBG40-125A |
5.6 |
1.56 |
16 |
45 |
2900 |
0.75 |
3.5 |
|
PBG40-160 |
6.3 |
1.75 |
32 |
40 |
2900 |
2.2 |
3.5 |
|
PBG40-160A |
5.9 |
1.64 |
28 |
39 |
2900 |
1.5 |
3.5 |
|
PBG40-160B |
5.5 |
1.53 |
24 |
38 |
2900 |
1.1 |
3.5 |
|
PBG40-200 |
6.3 |
1.75 |
50 |
33 |
2900 |
4.0 |
3.5 |
|
PBG40-200A |
5.9 |
1.64 |
44 |
31 |
2900 |
3.0 |
3.5 |
|
PBG40-200B |
5.3 |
1.47 |
36 |
29 |
2900 |
2.2 |
3.5 |
|
PBG40-250 |
6.3 |
1.75 |
80 |
28 |
2900 |
7.5 |
3.5 |
|
PBG40-250A |
5.9 |
1.64 |
70 |
28 |
2900 |
5.5 |
3.5 |
|
PBG40-250B |
5.5 |
1.53 |
60 |
27 |
2900 |
4.0 |
3.5 |
|
PBG40-100（I） |
12.5 |
3.47 |
12.5 |
62 |
1450 |
1.1 |
3.5 |
|
PBG40-100（I）A |
11 |
3.05 |
10 |
60 |
1450 |
0.75 |
3.5 |
|
PBG40-125（I） |
12.5 |
3.47 |
20 |
58 |
1450 |
1.5 |
3.5 |
|
PBG40-125（I）A |
11 |
3.05 |
16 |
57 |
1450 |
1.1 |
3.5 |
|
PBG40-160（I） |
12.5 |
3.47 |
32 |
52 |
2900 |
3.0 |
3.5 |
|
PBG40-160（I）A |
11.7 |
3.25 |
28 |
51 |
2900 |
2.2 |
3.5 |
|
PBG40-160（I）B |
10.4 |
2.89 |
22 |
50 |
2900 |
1.5 |
3.5 |
|
PBG40-200（I） |
12.5 |
3.47 |
50 |
46 |
2900 |
5.5 |
3.5 |
|
PBG40-200（I）A |
11.7 |
3.25 |
44 |
45 |
2900 |
4.0 |
3.5 |
|
PBG40-200（I）B |
10.6 |
2.94 |
36 |
44 |
2900 |
3.0 |
3.5 |
|
PBG40-250（I） |
12.5 |
3.47 |
80 |
38 |
2900 |
11 |
3.5 |
|
PBG40-250（I）A |
11.6 |
3.22 |
70 |
38 |
2900 |
7.5 |
3.5 |
|
PBG40-250（I）B |
10.8 |
3.0 |
60 |
37 |
2900 |
7.5 |
3.5 |
|
PBG40-250（I）C |
10.0 |
2.78 |
52 |
36 |
2900 |
5.5 |
3.5 |
|
PBG50-100 |
12.5 |
3.47 |
12.5 |
62 |
1450 |
1.1 |
3.5 |
|
PBG50-100A |
11 |
3.05 |
10 |
60 |
1450 |
0.75 |
3.5 |
|
PBG50-125 |
12.5 |
3.47 |
20 |
58 |
1450 |
1.5 |
3.5 |
|
PBG50-125A |
11 |
3.05 |
16 |
57 |
1450 |
1.1 |
3.5 |
|
PBG50-160 |
12.5 |
3.47 |
32 |
52 |
2900 |
3.0 |
3.5 |
|
PBG50-160A |
11.7 |
3.25 |
28 |
51 |
2900 |
2.2 |
3.5 |
|
PBG50-160B |
10.4 |
2.89 |
22 |
50 |
2900 |
1.5 |
3.5 |
|
PBG50-200 |
12.5 |
3.47 |
50 |
46 |
2900 |
5.5 |
3.5 |
|
PBG50-200A |
11.7 |
3.25 |
44 |
45 |
2900 |
4.0 |
3.5 |
|
PBG50-200B |
10.6 |
2.94 |
36 |
44 |
2900 |
3.0 |
3.5 |
|
PBG50-250 |
12.5 |
3.47 |
80 |
38 |
2900 |
11 |
3.5 |
|
PBG50-250A |
11.6 |
3.22 |
70 |
38 |
2900 |
7.5 |
3.5 |
|
PBG50-250B |
10.8 |
3.0 |
60 |
37 |
2900 |
7.5 |
3.5 |
|
PBG50-250C |
10.0 |
2.78 |
52 |
36 |
2900 |
5.5 |
3.5 |
|
PBG50-100（I） |
25 |
6.94 |
12.5 |
69 |
1450 |
1.5 |
3.8 |
|
PBG50-100（I）A |
22.3 |
6.19 |
10 |
67 |
1450 |
1.1 |
3.8 |
|
PBG50-125（I） |
25 |
6.94 |
20 |
68 |
1450 |
3.0 |
3.8 |
|
PBG50-125（I）A |
22.3 |
6.49 |
16 |
66 |
1450 |
2.2 |
3.8 |
|
PBG50-160（I） |
25 |
6.94 |
32 |
63 |
1450 |
4.0 |
3.8 |
|
PBG50-160（I）A |
23.4 |
6.5 |
28 |
62 |
1450 |
4.0 |
3.8 |
|
PBG50-160（I）B |
21.6 |
6.0 |
24 |
58 |
1450 |
3.0 |
3.8 |
|
PBG50-200（I） |
25 |
6.94 |
50 |
58 |
2900 |
7.5 |
3.8 |
|
PBG50-200（I）A |
23.5 |
6.53 |
44 |
57 |
2900 |
7.5 |
3.8 |
|
PBG50-200（I）B |
21.8 |
6.06 |
38 |
55 |
2900 |
5.5 |
3.8 |
|
PBG50-250（I） |
25 |
6.94 |
80 |
50 |
2900 |
15.0 |
3.8 |
|
PBG50-250（I）A |
23.4 |
6.5 |
70 |
50 |
2900 |
11.0 |
3.8 |
|
PBG50-250（I）B |
21.6 |
6.0 |
60 |
48 |
2900 |
11.0 |
3.8 |
|
PBG50-315（I） |
25 |
6.94 |
125 |
40 |
2900 |
30.0 |
3.8 |
|
PBG50-315（I）A |
23.7 |
6.58 |
113 |
40 |
2900 |
22.0 |
3.8 |
|
PBG50-315（I）B |
22.5 |
6.25 |
101 |
39 |
2900 |
18.5 |
3.8 |
|
PBG50-315（I）C |
20.6 |
5.72 |
85 |
38 |
2900 |
15.0 |
3.8 |
|
PBG65-100 |
25 |
6.94 |
12.5 |
69 |
1450 |
1.2 |
3.8 |
|
PBG65-100A |
22.3 |
6.19 |
10 |
67 |
1450 |
1.1 |
3.8 |
|
PBG65-125 |
25 |
6.94 |
20 |
68 |
1450 |
3.0 |
3.8 |
|
PBG65-125A |
22.3 |
6.19 |
16 |
66 |
1450 |
2.2 |
3.8 |
|
PBG65-160 |
25 |
6.94 |
32 |
63 |
1450 |
4.0 |
3.8 |
|
PBG65-160A |
23.4 |
6.5 |
28 |
62 |
1450 |
4.0 |
3.8 |
|
PBG65-160B |
21.6 |
6.0 |
24 |
58 |
1450 |
3.0 |
3.8 |
|
PBG65-200 |
25 |
6.94 |
50 |
58 |
2900 |
7.5 |
3.8 |
|
PBG65-200A |
23.5 |
6.53 |
44 |
57 |
2900 |
7.5 |
3.8 |
|
PBG65-200B |
21.8 |
6.06 |
38 |
55 |
2900 |
5.5 |
3.8 |
|
PBG65-250 |
25 |
6.94 |
80 |
50 |
2900 |
15.0 |
3.8 |
|
PBG65-250A |
23.4 |
6.5 |
70 |
50 |
2900 |
11.0 |
3.8 |
|
PBG65-250B |
21.6 |
6.0 |
60 |
49 |
2900 |
11.0 |
3.8 |
|
PBG65-315 |
25 |
6.94 |
125 |
40 |
2900 |
30. |
3.8 |
|
PBG65-315A |
23.7 |
6.58 |
113 |
40 |
2900 |
22.0 |
3.8 |
|
PBG65-315B |
22.5 |
6.25 |
101 |
39 |
2900 |
18.5 |
3.8 |
|
PBG65-315C |
20.6 |
5.72 |
85 |
38 |
2900 |
15.5 |
3.8 |
|
PBG65-100（I） |
50 |
13.9 |
12.5 |
73 |
1450 |
3.0 |
4.2 |
|
PBG65-100（I）A |
44.7 |
12.5 |
10 |
72 |
1450 |
2.2 |
4.2 |
|
PBG65-125（I） |
50 |
13.9 |
20 |
72.5 |
1450 |
5.5 |
4.2 |
|
PBG65-125（I）A |
45 |
12.5 |
16 |
71 |
1450 |
4.0 |
4.2 |
|
PBG65-160（I） |
50 |
13.9 |
32 |
71 |
1450 |
7.5 |
4.2 |
|
PBG65-160（I）A |
46.7 |
13.0 |
28 |
70 |
1450 |
7.5 |
4.2 |
|
PBG65-160（I）B |
43.3 |
12.0 |
24 |
69 |
1450 |
5.5 |
4.2 |
|
PBG65-200（I） |
50 |
13.9 |
50 |
67 |
2900 |
15.0 |
4.2 |
|
PBG65-200（I）A |
47 |
13.1 |
44 |
66 |
2900 |
11.0 |
4.2 |
|
PBG65-200（I）B |
43.5 |
12.1 |
38 |
65 |
2900 |
7.5 |
4.2 |
|
PBG65-250（I） |
50 |
13.9 |
80 |
59 |
2900 |
22.0 |
4.2 |
|
PBG65-250（I）A |
46.7 |
13.0 |
70 |
59 |
2900 |
18.5 |
4.2 |
|
PBG65-250（I）B |
43.3 |
12.0 |
60 |
58 |
2900 |
15.0 |
4.2 |
|
PBG65-315（I） |
50 |
13.9 |
125 |
54 |
2900 |
34.0 |
4.2 |
|
PBG65-315（I）A |
46.5 |
12.9 |
110 |
54 |
2900 |
30.0 |
4.2 |
|
PBG65-315（I）B |
44.5 |
12.4 |
100 |
53 |
2900 |
30.0 |
4.2 |
|
PBG65-315（I）C |
41 |
11.4 |
85 |
51 |
2900 |
22.0 |
4.2 |
|
PBG80-100 |
50 |
13.9 |
12.5 |
73 |
1450 |
3.0 |
4.2 |
|
PBG80-100A |
44.7 |
12.4 |
10 |
72 |
1450 |
2.2 |
4.2 |
|
PBG80-125 |
50 |
13.9 |
20 |
72.5 |
1450 |
5.5 |
4.2 |
|
PBG80-125A |
45 |
12.5 |
16 |
71 |
1450 |
4.0 |
4.2 |
|
PBG80-160 |
50 |
13.9 |
32 |
71 |
1450 |
7.5 |
4.2 |
|
PBG80-160A |
46.7 |
13.0 |
28 |
70 |
1450 |
7.5 |
4.2 |
|
PBG80-160B |
43.3 |
12.0 |
24 |
69 |
1450 |
5.5 |
4.2 |
|
PBG80-200 |
50 |
13.9 |
50 |
67 |
2900 |
15.5 |
4.2 |
|
PBG80-200A |
47 |
13.1 |
44 |
66 |
2900 |
11.0 |
4.2 |
|
PBG80-200B |
43.5 |
12.1 |
38 |
65 |
2900 |
7.5 |
4.2 |
|
PBG80-250 |
50 |
13.9 |
80 |
59 |
2900 |
22.0 |
4.2 |
|
PBG80-250A |
46.7 |
13.0 |
70 |
59 |
2900 |
18.5 |
4.2 |
|
PBG80-315 |
50 |
13.9 |
125 |
54 |
2900 |
37.0 |
4.2 |
|
PBG80-315A |
46.5 |
12.9 |
110 |
54 |
2900 |
30.0 |
4.2 |
|
PBG80-315B |
44.5 |
12.4 |
100 |
53 |
2900 |
30.0 |
4.2 |
|
PBG80-315C |
41 |
11.4 |
85 |
51 |
2900 |
22.0 |
4.2 |
|
PBG80-100（I） |
100 |
27.8 |
12.5 |
76 |
1450 |
5.5 |
4.2 |
|
PBG80-100（I）A |
89 |
24.7 |
10 |
74 |
1450 |
4.0 |
4.2 |
|
PBG80-125（I） |
100 |
27.8 |
20 |
76 |
1450 |
11.0 |
4.2 |
|
PBG80-125（I）A |
89 |
24.7 |
16 |
74 |
1450 |
7.5 |
4.2 |
|
PBG80-160（I） |
100 |
27.8 |
32 |
76 |
1450 |
15.0 |
4.2 |
|
PBG80-160（I）A |
93.5 |
26.0 |
28 |
74 |
1450 |
11.0 |
4.2 |
|
PBG80-160（I）B |
86.6 |
24.1 |
24 |
72 |
1450 |
11.0 |
4.2 |
|
PBG80-200（I） |
100 |
27.8 |
50 |
74 |
1450 |
22.0 |
4.2 |
|
PBG80-200（I）A |
93.5 |
26.0 |
44 |
73 |
1450 |
18.5 |
5.5 |
|
PBG80-200（I）B |
87 |
24.2 |
38 |
71 |
1450 |
15.0 |
5.5 |
|
PBG100-100 |
100 |
27.8 |
12.5 |
76 |
1450 |
5.5 |
5.5 |
|
PBG100-100A |
89 |
24.7 |
10 |
74 |
1450 |
4.0 |
5.5 |
|
PBG100-125 |
100 |
27.8 |
20 |
76 |
1450 |
11.0 |
5.5 |
|
PBG100-125A |
89 |
24.7 |
16 |
74 |
1450 |
7.5 |
5.5 |
|
PBG100-160 |
100 |
27.8 |
32 |
76 |
1450 |
15.0 |
5.5 |
|
PBG80-250B |
43.3 |
12.0 |
60 |
58 |
2900 |
15.0 |
4.2 |
|
PBG100-160A |
93.5 |
26.0 |
28 |
74 |
1450 |
11.0 |
5.5 |
|
PBG100-160B |
86.6 |
24.1 |
24 |
72 |
1450 |
11.0 |
5.5 |
|
PBG100-200 |
100 |
27.8 |
50 |
74 |
1450 |
22.0 |
5.5 |
|
PBG100-200A |
93.5 |
26.0 |
44 |
73 |
1450 |
18.5 |
5.5 |
|
PBG100-200B |
87 |
27.2 |
38 |
71 |
1450 |
15.0 |
5.5 |
|
PBG125-100 |
160 |
44.4 |
12.5 |
82 |
1450 |
11.0 |
5.5 |
|
PBG125-100A |
143 |
39.7 |
10 |
77 |
1450 |
7.5 |
5.5 |
|
PBG125-125 |
160 |
44.4 |
20 |
80 |
1450 |
15.0 |
5.5 |
|
PBG125-25A |
143 |
39.7 |
16 |
77 |
1450 |
11.0 |
5.5 |
|
PBG125-160 |
160 |
44.4 |
32 |
78 |
1450 |
22.0 |
5.5 |
|
PBG125-160A |
150 |
41.7 |
28 |
76 |
1450 |
18.5 |
5.5 |
|
PBG125-1160B |
138 |
38.3 |
24 |
73 |
1450 |
15.0 |
5.5 |
|
PBG125-200 |
160 |
44.4 |
50 |
77 |
1450 |
37.0 |
5.5 |
|
PBG125-200A |
150 |
41.7 |
44 |
76 |
1450 |
30.0 |
5.5 |
|
PBG125-200B |
138 |
38.3 |
37.5 |
75 |
1450 |
22.0 |
5.5 |
|
PBG150-200 |
200 |
55.6 |
12.5 |
78 |
1450 |
15.0 |
5.0 |
|
PBG150-200A |
179 |
49.7 |
10 |
76 |
1450 |
11.0 |
5.0 |
|
PBG150-250 |
200 |
55.6 |
20 |
79 |
1450 |
18.5 |
5.0 |
|
PBG150-250A |
184.4 |
51.2 |
17 |
78 |
1450 |
15.0 |
5.0 |
|
PBG150-250B |
167 |
46.4 |
14 |
76 |
1450 |
11.0 |
5.0 |
|
PBG150-315 |
200 |
55.6 |
32 |
78 |
1450 |
30.0 |
5.5 |
|
PBG150-315A |
187 |
51.9 |
28 |
77 |
1450 |
22.0 |
5.5 |
|
PBG150-315B |
173 |
48.1 |
24 |
76 |
1450 |
18.5 |
5.5 |
|
PBG150-400 |
200 |
55.6 |
50 |
75 |
1450 |
45.0 |
5.5 |
|
PBG150-400A |
187 |
51.9 |
44 |
74 |
1450 |
37.0 |
5.5 |
|
PBG150-400B |
174 |
48.3 |
38 |
73 |
1450 |
30.0 |
5.5 |
|
PBG150-400C |
160 |
44.4 |
32 |
71 |
1450 |
22.0 |
5.5 |
|
PBG200-200 |
200 |
55.6 |
12.5 |
78 |
1450 |
15.0 |
5.0 |
|
PBG200-200A |
179 |
49.7 |
10 |
76 |
1450 |
11.0 |
5.0 |
|
PBG200-250 |
200 |
55.9 |
20 |
79 |
1450 |
18.5 |
5.0 |
|
PBG200-250A |
184.4 |
51.2 |
17 |
78 |
1450 |
15.0 |
5.0 |
|
PBG200-250B |
167 |
46.4 |
14 |
76 |
1450 |
11.1 |
5.0 |
|
PBG200-315 |
200 |
55.6 |
32 |
78 |
1450 |
30.0 |
5.5 |
|
PBG200-315A |
187 |
51.9 |
28 |
77 |
1450 |
22.0 |
5.5 |
|
PBG200-315B |
173 |
48.1 |
24 |
76 |
1450 |
18.5 |
5.5 |
|
PBG200-400 |
200 |
55.6 |
50 |
75 |
1450 |
45.0 |
5.5 |
|
PBG200-400A |
187 |
51.9 |
44 |
74 |
1450 |
37.0 |
5.5 |
|
PBG200-400B |
174 |
48.3 |
38 |
73 |
1450 |
30.0 |
5.5 |
|
PBG200-400C |
160 |
44.4 |
32 |
71 |
1450 |
22.0 |
5.5 |
|
PBG200-200（I） |
400 |
111.1 |
12.5 |
80 |
1450 |
22.0 |
5.5 |
|
PBG200-200（I）A |
358 |
99.4 |
10 |
78 |
1450 |
18.5 |
5.5 |
|
PBG200-250（I） |
400 |
111.4 |
20 |
80 |
1450 |
30.0 |
5.5 |
|
PBG200-250（I）A |
358 |
99.4 |
16 |
78 |
1450 |
22.0 |
5.5 |
|
PBG200-250（I）B |
322 |
89.4 |
13 |
75 |
1450 |
18.5 |
5.5 |
|
PBG200-315（I） |
400 |
111.4 |
32 |
80 |
1450 |
55.0 |
5.5 |
|
PBG200-315（I）A |
374 |
103.9 |
28 |
79 |
1450 |
45.0 |
5.5 |
|
PBG200-315（I）B |
346 |
96.1 |
24 |
78 |
1450 |
37.0 |
5.5 |
|
PBG200-400（I） |
400 |
111.4 |
50 |
81 |
1450 |
75.0 |
5.5 |
|
PBG200-400（I）A |
374 |
103.9 |
44 |
80 |
1450 |
75.0 |
5.5 |
|
PBG200-400（I）B |
346 |
96.1 |
30 |
78 |
1450 |
55.0 |
5.5 |
|
PBG200-400（I）C |
320 |
88.9 |
32 |
76 |
1450 |
45.0 |
5.5 |
|
PBG300-235 |
720 |
200 |
18 |
81 |
970 |
55.0 |
6.0 |
|
PBG300-235A |
657 |
182.5 |
15 |
79 |
970 |
45.0 |
6.0 |
|
PBG300-235B |
600 |
167.0 |
12.5 |
77 |
970 |
37.0 |
6.0 |
|
PBG300-300 |
720 |
200 |
28 |
81 |
970 |
75.0 |
6.0 |
|
PBG300-300A |
666 |
185 |
24 |
80 |
970 |
75.0 |
6.0 |
|
PBG300-300B |
623 |
173.1 |
21 |
79 |
970 |
55.0 |
6.0 |
|
PBG300-380 |
720 |
200 |
44 |
84 |
970 |
132.0 |
6.0 |
|
PBG300-380A |
666 |
185 |
38 |
80 |
970 |
110.0 |
6.0 |
|
PBG300-380B |
614 |
170.6 |
32 |
78 |
970 |
90.0 |
6.0 |
|
PBG300-235（I） |
1080 |
300 |
40 |
82 |
970 |
160.0 |
6.0 |
|
PBG300-235（I）A |
965 |
268.1 |
32 |
80 |
970 |
132.0 |
6.0 |
